RELAY VALVE R6 CHASSIS MOUNT TRUCK 279180 280375 244990




Product Description

Manufacturer: BTP

Part Number: 279952X

Condition: NEW

Bendix reman valves have the same warranty as new valves

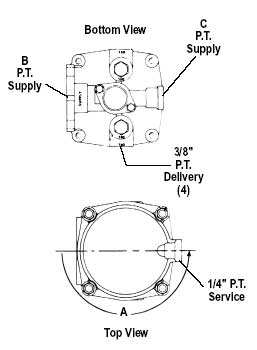

Degrees service port angle A = 180

Supply port B size = 3/4" pipe thread

Supply port C size = 3/8" pipe thread

2 hole mounting flange

Relay valves are primarily used on long wheelbase vehicles to apply and release rear axle(s) service or parking brakes. They are air operated, graduating control valves of high capacity and fast response. Upon signal pressure from the service brake valve, they graduate, hold or release air pressure from the chambers to which they are connected. They are generally mounted close to the chambers they serve. Relay valves are available in both remote and reservoir mount designs and feature inlet/exhaust valve cartridge replacement without line removal.

Cross References: 279952, 279180, 279180X, 279730, 279730X, 279952R, D2X2654, M1567183, 7926000493, A103600, 279952B1, SA147, 936001005, 9006449, 177141, 034021
A cross reference listing means that this valve is a suitable replacement for the part numbers listed. Some changes in air line plumbing may be required.
